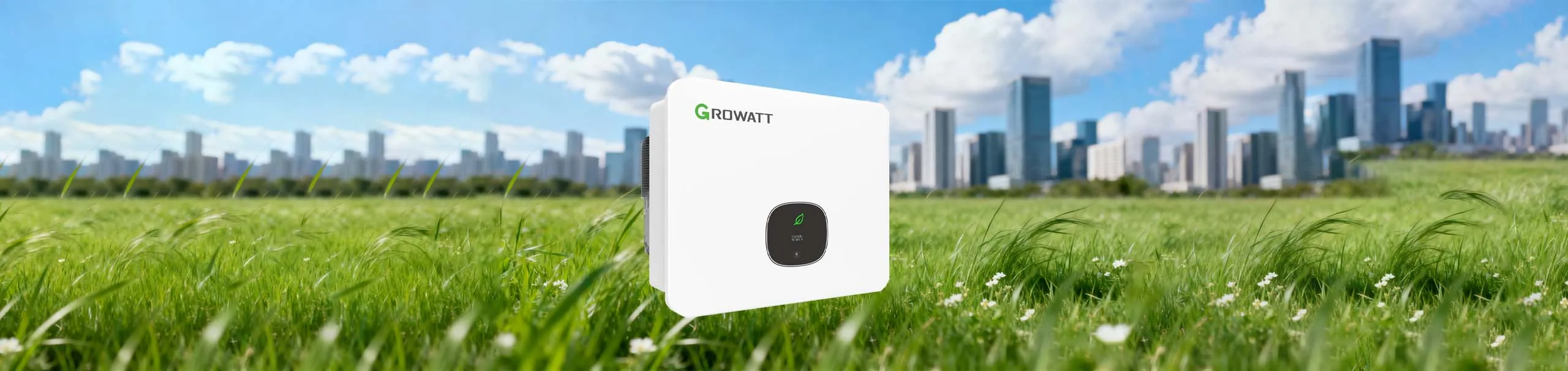

MID 20-30KTL3-X2
- OLED display, touch buttons
- A brand-new heat dissipation design reduces size and weight by 50%.
-
Maximum conversion efficiency: 98.75%
-
-Dual MPPT
- - String current: 16A
Category:
Specific details：
| MID 20KTL3-X2 | MID 25KTL3-X2 | MID 30KTL3-X2 | |
| Input data (DC) | |||
| Maximum DC input power | 30000W | 37500W | 45000W |
| Maximum DC input voltage | 1100V | ||
| Start-up voltage | 200V | ||
| MPPT operating voltage range /rated input voltage |
200V-1000V/580V | 200V-1000V/580V | 200V-1000V/600V |
| Max input current per MPPT channel |
32A/32A | 32A/36A | 32A/48A |
| Number of MPPTs /Number of MPPTs per channel |
2/2+2 | 2/2+2 | 2/2+3 |
| Output data (communication) | |||
| Rated AC output power | 20000W | 25000W | 30000W |
| Max AC output power | 22200VA | 27700VA | 33300VA |
| Maximum AC output current | 33.6A | 40.2A | 50.5A |
| Rated output voltage/range | 380V/340-440V | ||
| Rated power grid frequency /range |
50Hz,60Hz /±5Hz | ||
| Power factor | 1 | ||
| Power factor adjustment range | 0.8 Leading – 0.8 Lagging | ||
| THDi | <3% | ||
| Communication connection type | 3W+N+PE | ||
| Efficiency | |||
| Max efficiency | 98.75% | ||
| Chinese efficiency | 98.60% | ||
| MPPT efficiency | 99.90% | ||
| Equipment protection | |||
| DC polarity reverse connection protection |
Yes | ||
| DC input switch | Yes | ||
| DC/AC surge protection | Class II | ||
| Insulation resistance testing | Yes | ||
| Island protection | Yes | ||
| AC short circuit protection | Yes | ||
| String fault monitoring | Optional | ||
| Arc fault detection | Optional | ||
| Regular data | |||
| Dimensions (W/H/T) | 525/395/222mm | ||
| weight | 22kg | 22kg | 24kg |
| Operating temperature range | -30°C … +60°C | ||
| highest altitude | 4000m (2000m without reduction) | ||
| Nighttime self-consumption of electricity |
<1W | ||
| Topology | Transformerless | ||
| Cooling method | Intelligent air cooling | ||
| Protection level | IP66 | ||
| relative humidity | 0~100%, no condensation | ||
| Features | |||
| DC input connector | H4/MC4 (optional) | ||
| AC output connector | Waterproof PG connector + OT terminal | ||
| show | OLED+LED/WIFI+APP | ||
| Communication interfaces: USB/RS485/WIFI/GPRS/4G |
Available/Available/Optional/Optional | ||
| Warranty: 5 years / 10 years |
Standard/Optional | ||
Product Description：
This residential PV inverter is tailored for overseas households, from suburban villas to urban apartments with rooftop solar, turning sunlight into savings with top-tier efficiency and unmatched adaptability. It’s the key to maximizing your solar system’s potential while simplifying installation and operation.
Boasting a maximum conversion efficiency of 98.75%, it minimizes energy loss during DC-AC conversion—capturing more usable power from every ray of sunlight. For a typical 5kW solar system, this translates to extra 100+ kWh annual electricity, slashing your utility bills significantly and accelerating your return on investment.
With a maximum DC voltage of 1100V and support for high-current solar modules, it eliminates the need for excessive series-parallel connections, reducing wiring complexity and energy (loss). This makes it perfect for pairing with latest high-power panels, whether you’re upgrading an old system or building a new one. The multi-MPPT (Maximum Power Point Tracking) design ensures independent optimization of each solar string—even if some panels are shaded by trees or buildings, the rest maintain peak performance, avoiding overall power drop.
Compact, easy to install, and compatible with most residential solar setups, it comes with built-in safety protections against overvoltage, overheating, and short circuits. Whether you’re in sun-drenched Australia, Europe’s variable climates, or North America’s suburban areas, this inverter delivers stable, efficient power—your reliable partner for affordable, eco-friendly home energy.
