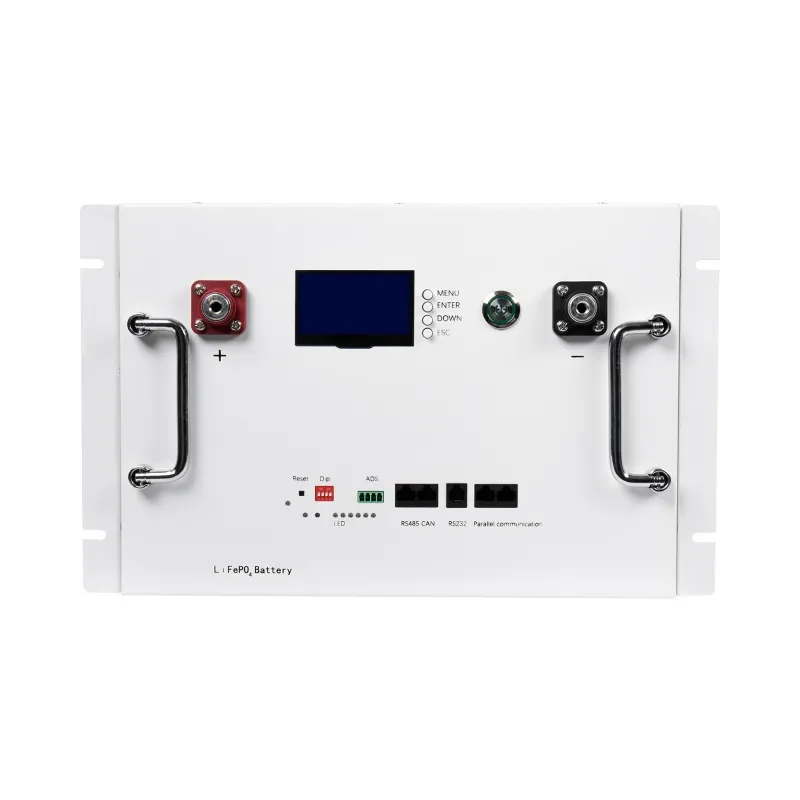

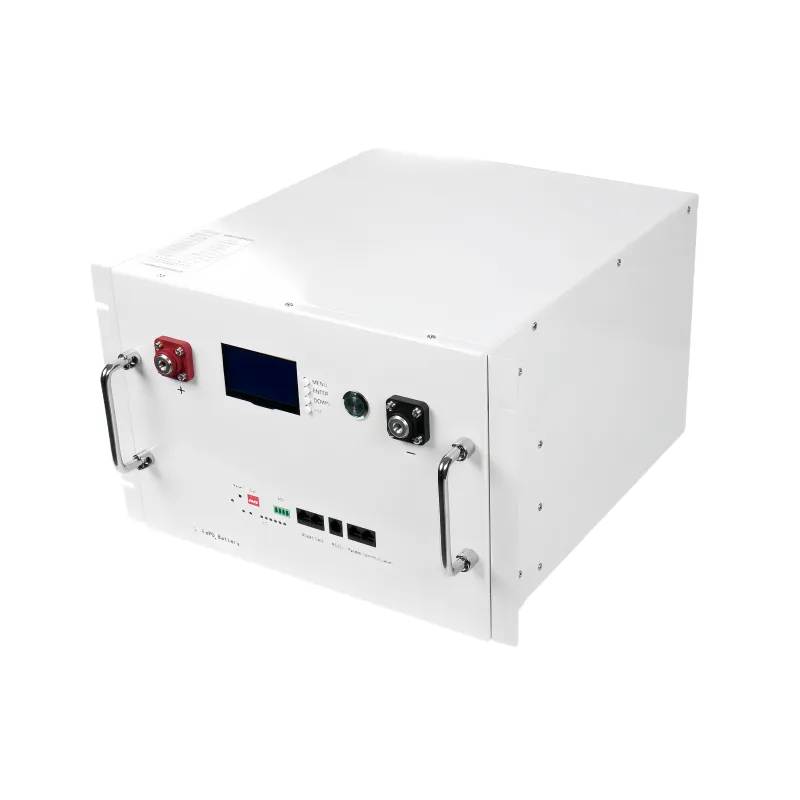

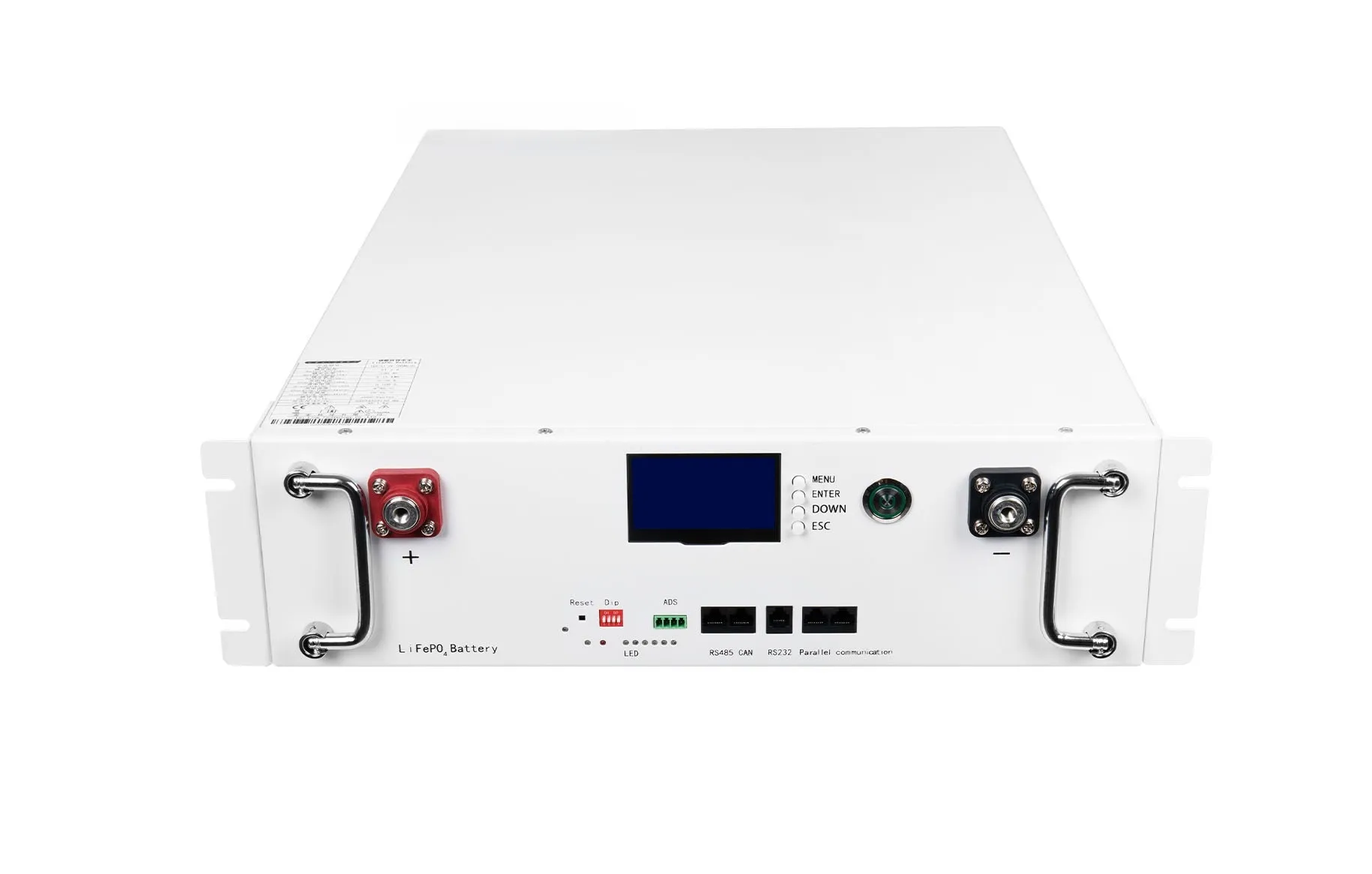

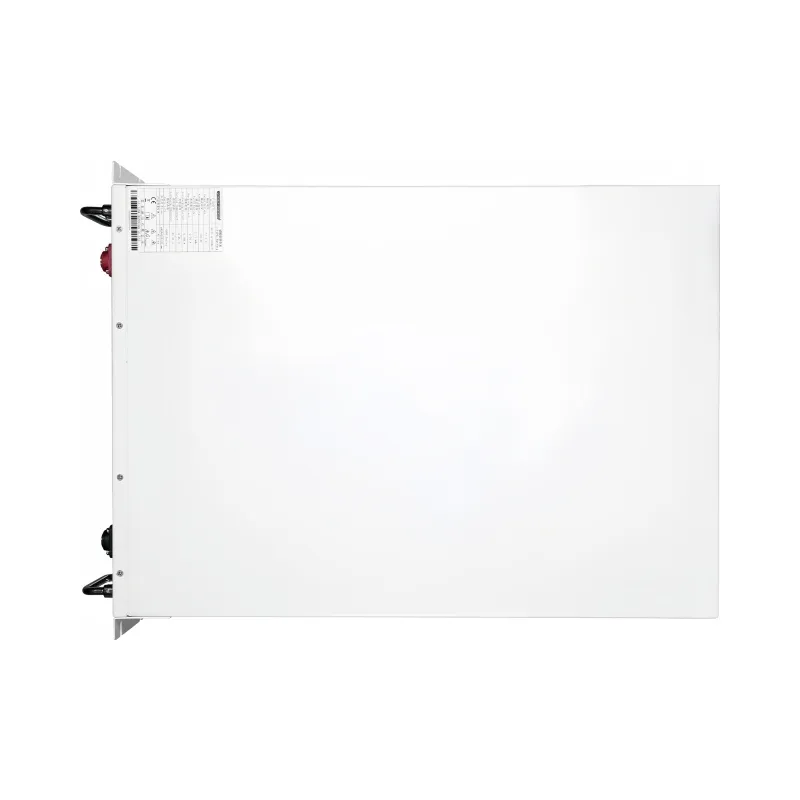

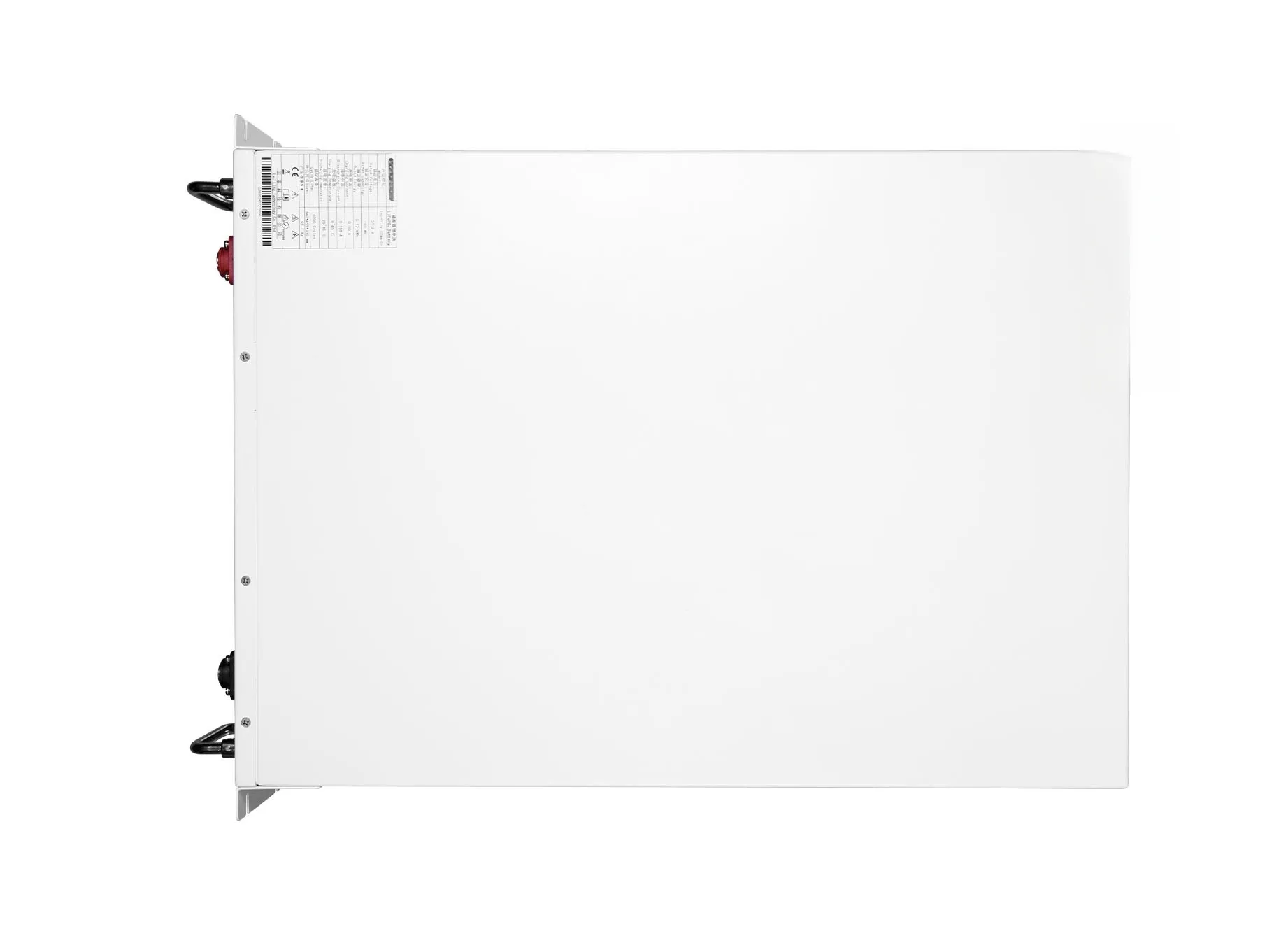

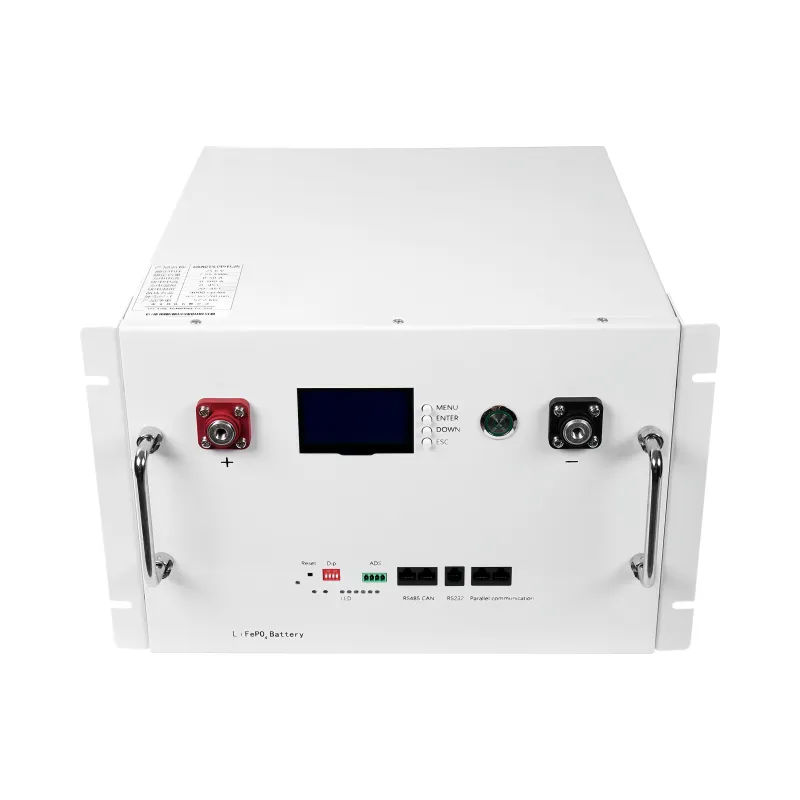

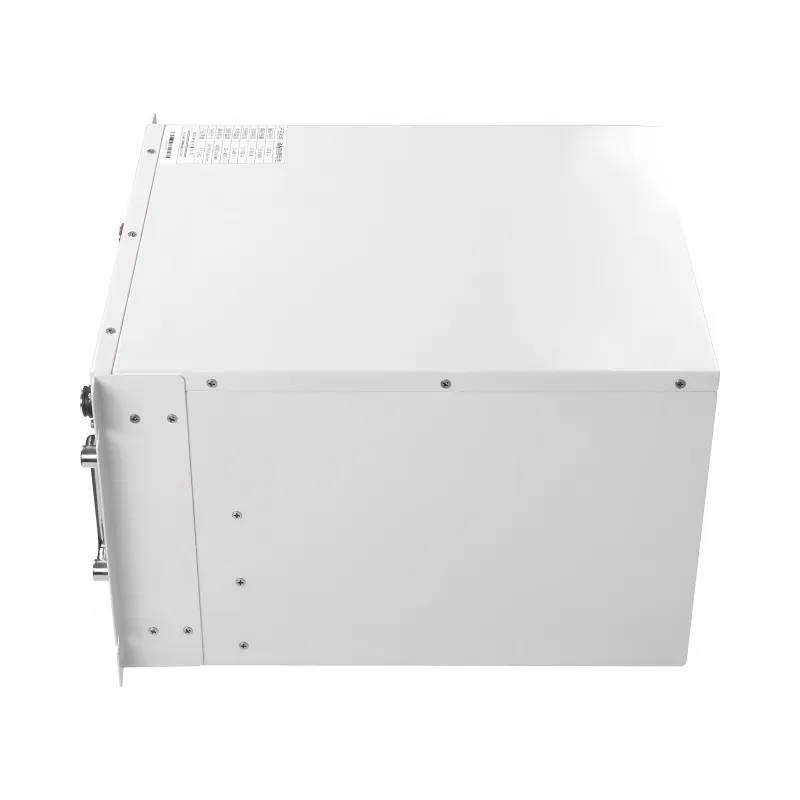

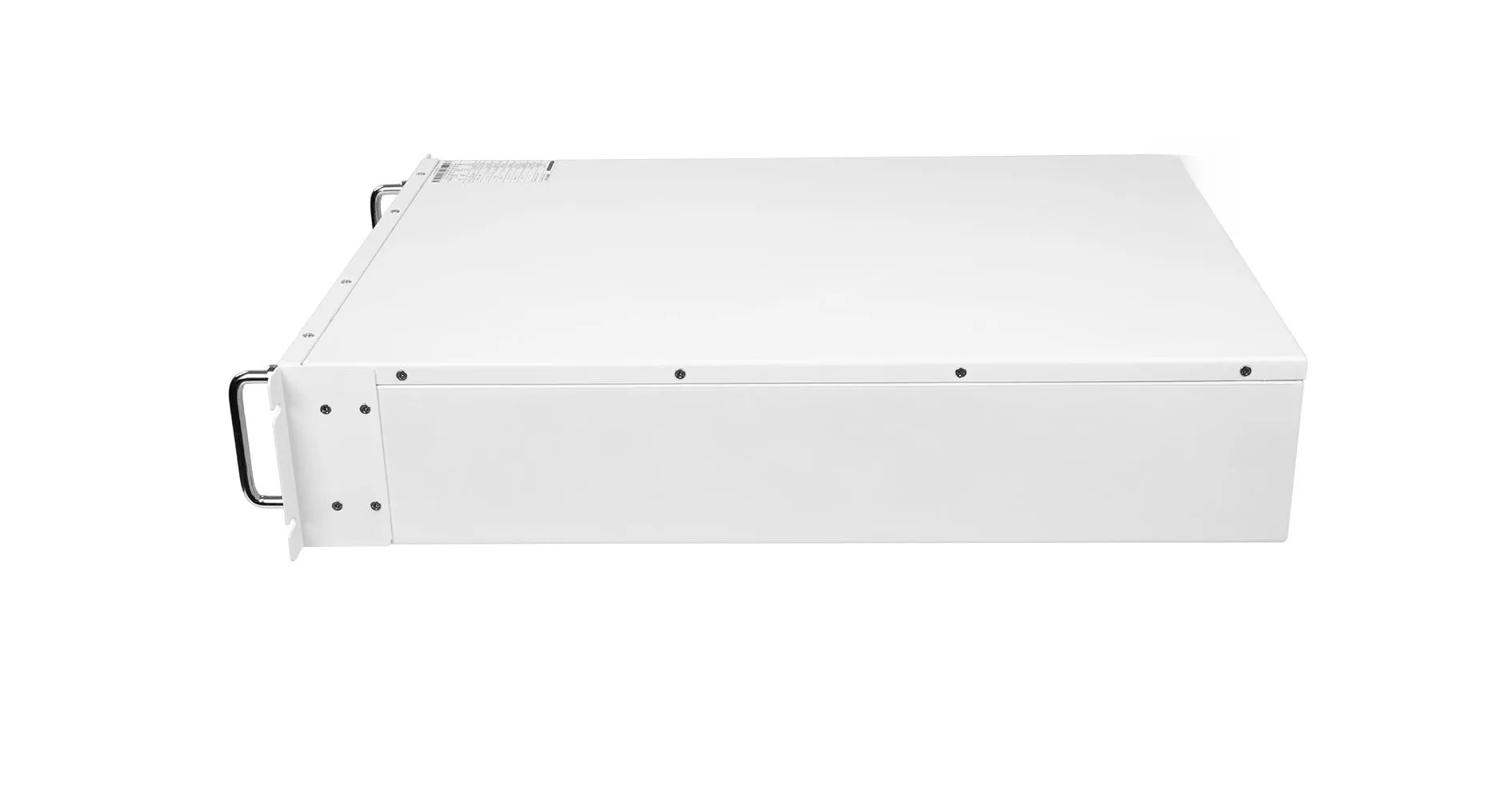

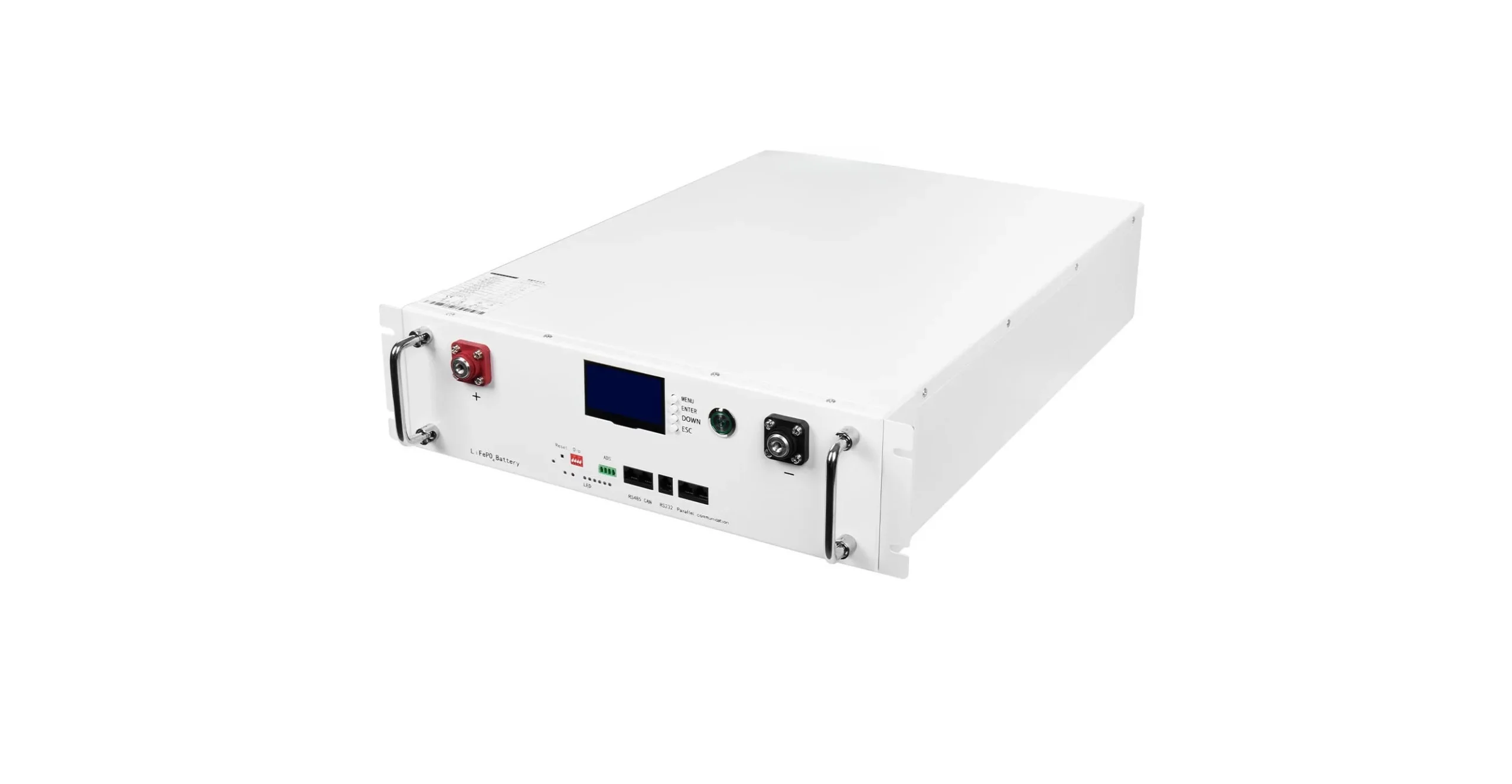

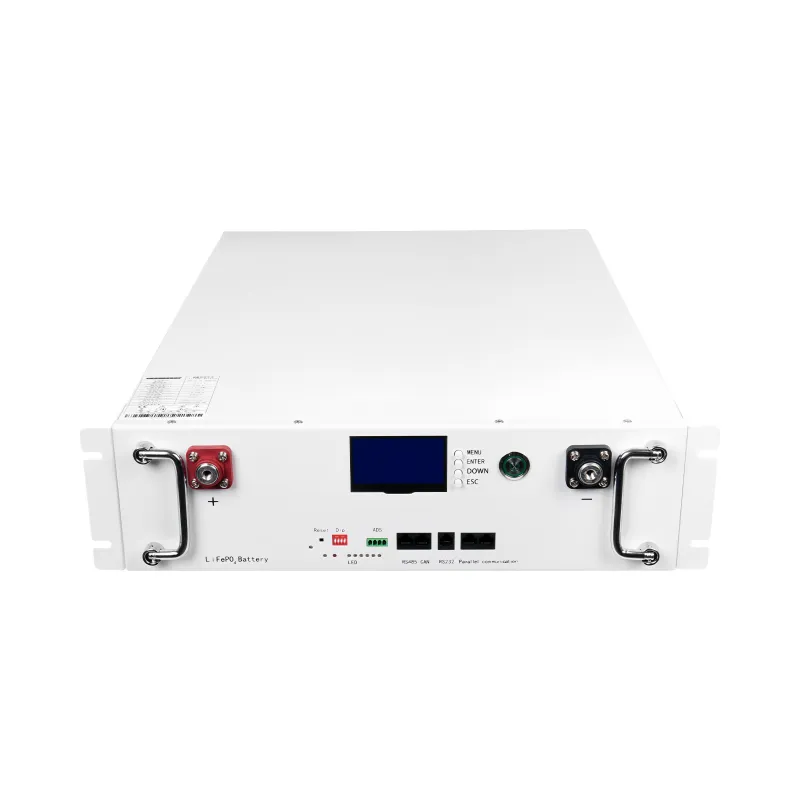

Rack-mounted lithium battery
磷酸铁锂机架式储能电池
| 序号 | 规格型号 | 单价 |
| 1 | LR 1.2kw | ￥100.00 |
| 2 | LR 1.3kw | ￥101.00 |
| 3 | LR 1.4kw | ￥102.00 |
| 4 | LR 1.5kw | ￥103.00 |
Category:
储能电池
6000次循环
质量
好品质磷酸铁锂
Specific details：
| 1.5 | 1 | 12 |
| 照明 | 0.1 | 12 |
| 组件 | 4.55 | 3412.5 |
| 离网逆变器 | 5KW | 3000 |
| 储能 | 10KWH | 8500 |
| 支架 | 1500 | |
| 线缆 | 800 | |
| 安装 | 2000 |
| Product Parameter | |||

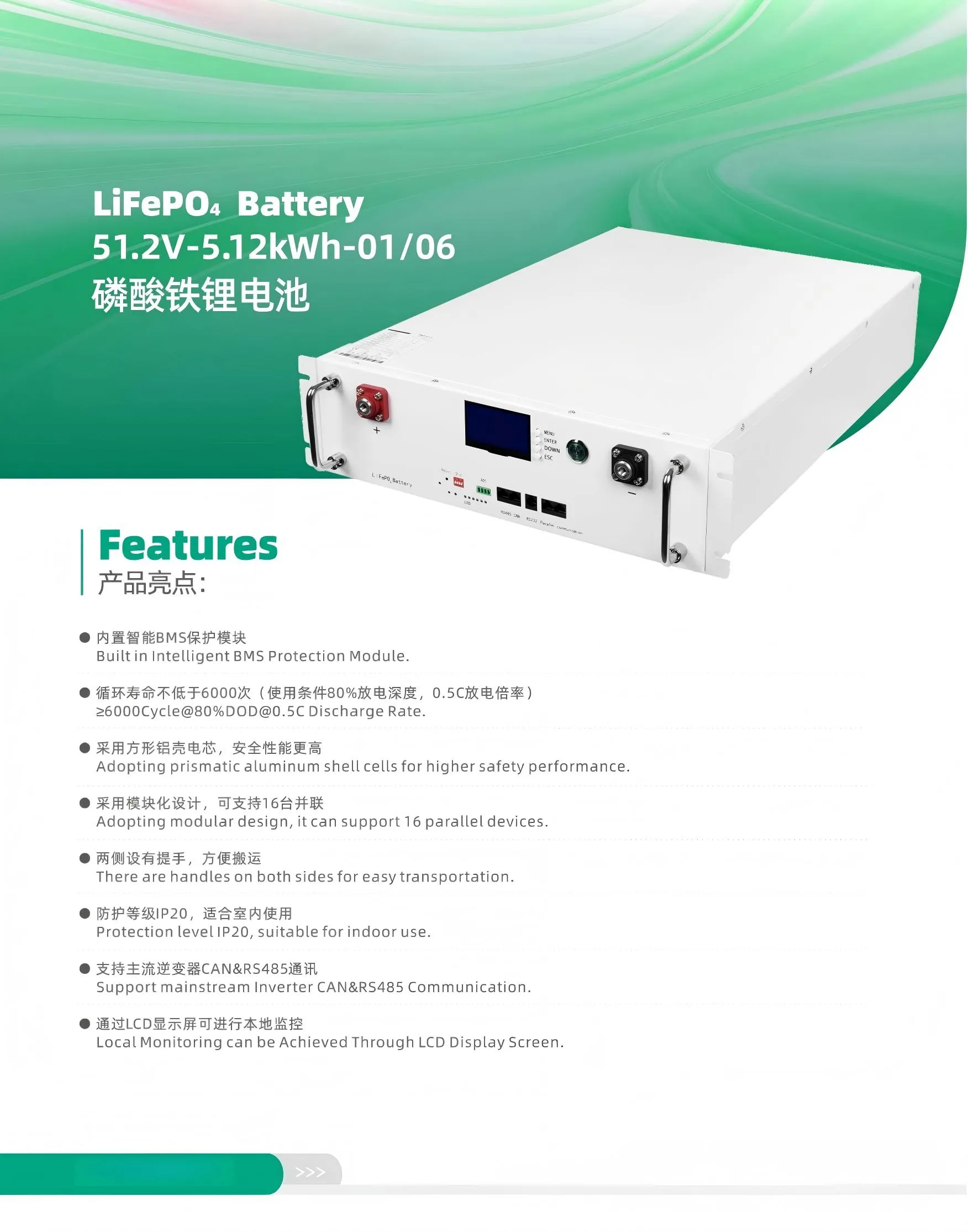

| Model | 51.2V-5.12kWh-01 | 51.2V-5.12kWh-06 | |
| Electrical Characteristics |
Battery Cell Material | Lithium Iron Phosphate(LiFePO₄) | |
| Nominal Voltage | 51.2V | ||
| Nominal Capacity | 100Ah | ||
| Nominal Energy | 5.12kWh | ||
| Output Power | 5.12kW | ||
| Upper charge voltage: | 55.2V | ||
| Discharge cut-off voltage | 44.8V | ||
| Self-Discharge Rate | <2%Per Month | ||
| Lifespan | ≥6000Cycle@80%DOD@0.5C Discharge Rate | ||
| Mechanical Characteristics |
Battery Cell Type | 方块电芯Prismatic Battery Cell | |
| Battery Cell Layout | 16S | ||
| Product Dimension | 640*455*130mm | ||
| Packing Dimension | 750*570*280mm | ||
| Net Weight | 45.1kg | ||
| Gross Weight | 51.2kg | ||
| Protection | Ip20 | ||
| MAX Parallel | 16PCS | ||
| Working Temperature | 0~45℃ | ||
| Storage Temperature | -20~45℃ | ||
| Power Terminal | M8 Combination screw fastening | ||
| BMS Characteristics |
MAX Discharge Current | 100A | |
| MAX Charging Current | 100A | ||
| Discharge Protection Voltage | 43.2V | ||
| Charge Protection Voltage | 58.4V | ||
| Float Charge Voltage | 57.6V | ||
| Overcurrent Protection | 130A | ||
| Short-Circuit Protection | Supported,Recovery after the load disconnected | ||
| Communication Port | RS485/CAN | ||
Product Description：
