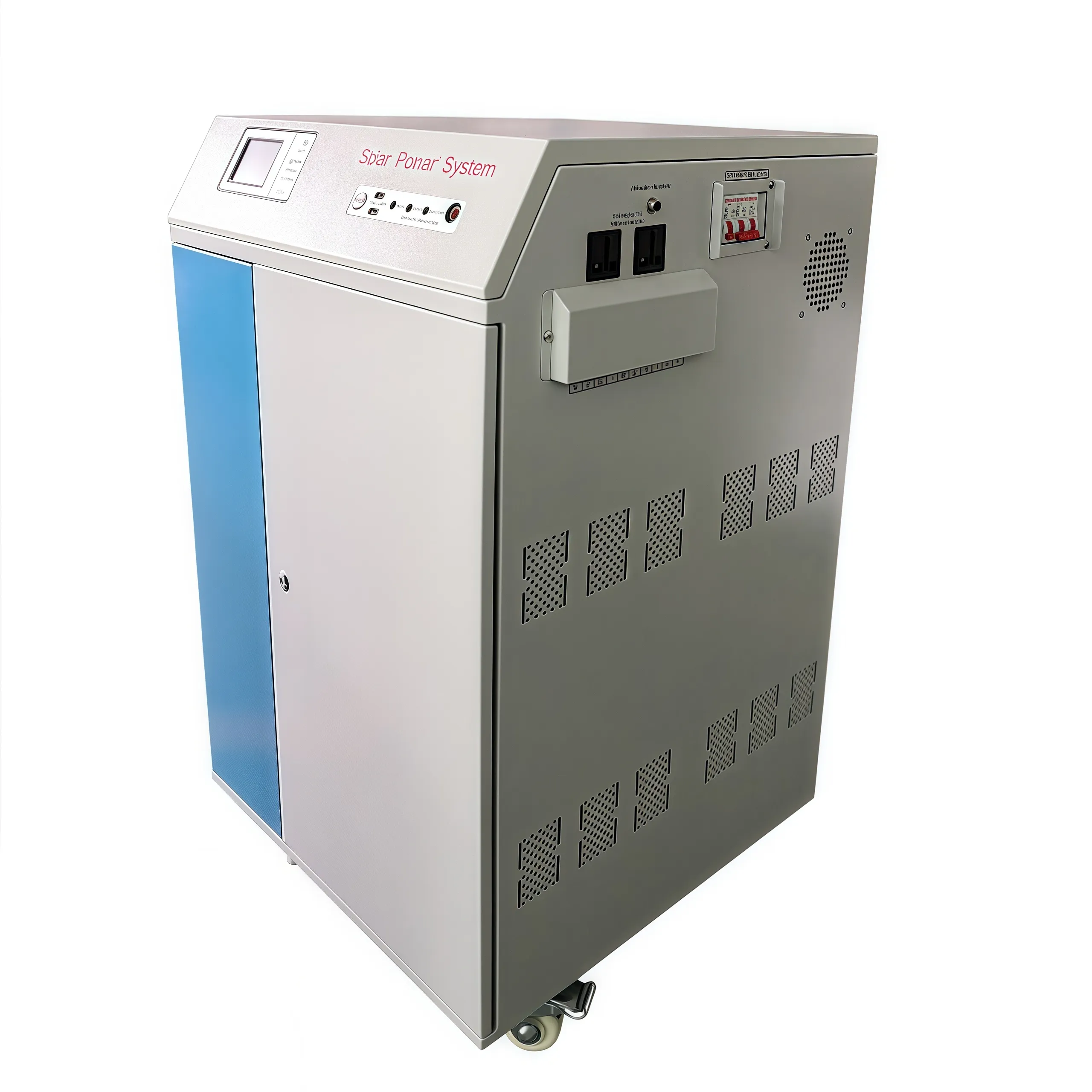

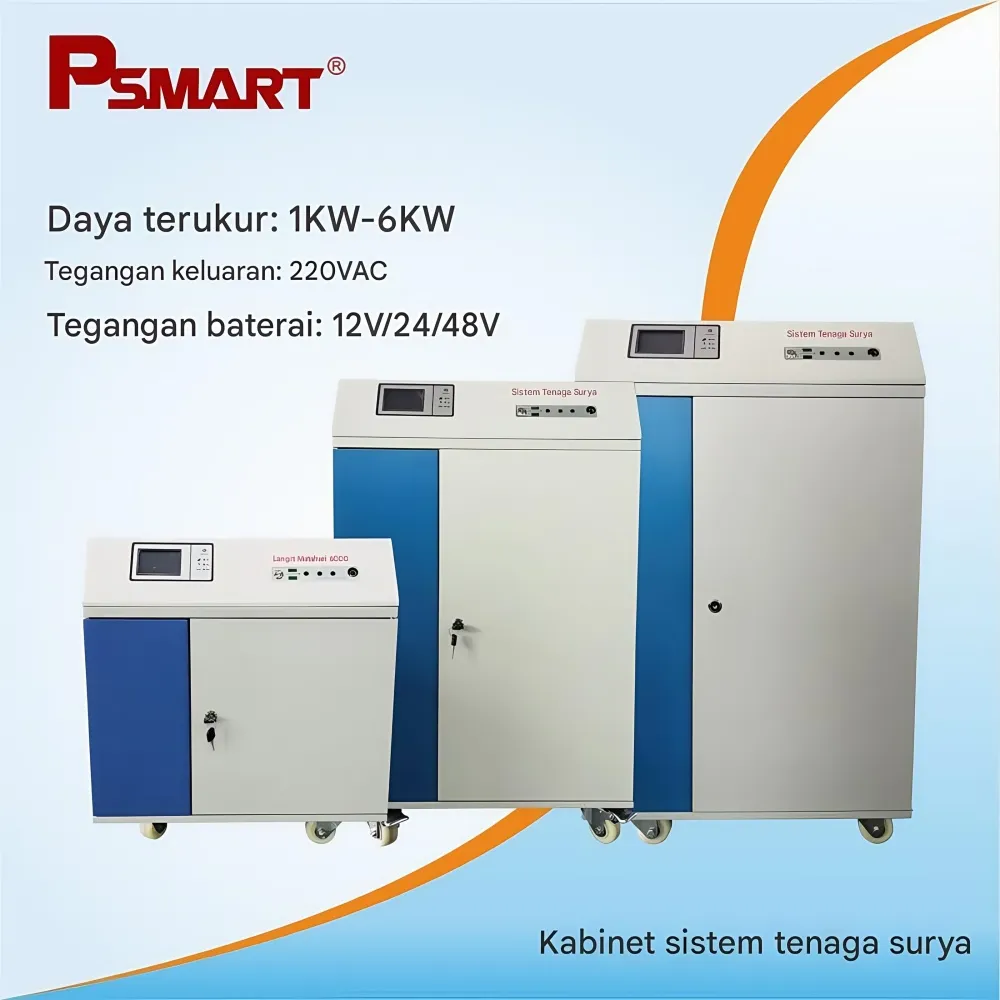

Kabinet sistem pembangkit listrik tenaga surya off-grid 2000W-6000W
Model |
Baterai |
Price |
ST200 24V/2000W/50A/pwm |
2* 200AH |
$391.23 |
ST200 48V/2000W/60A/MPPT |
4* 200AH |
$417.69 |
ST300 24V/3000W/60A/MPPT |
2* 200AH |
$417.69 |
ST300 48V/3000W/60A/MPPT |
4* 200AH |
$444.15 |
ST400 48V/4000W/60A/MPPT |
4* 200AH |
$548.10 |
ST500 48V/5000W/60A/MPPT |
4* 200AH |
$574.56 |
ST500 48V/6000W/60A/MPPT |
4* 200AH |
$650.16 |
Category:
Off-grid
Independent power generation system
Battery system
High-quality gel battery
Dual Mode
Mains electricity, solar energy
Power frequency solution
Meet various equipment load requirements
Specific details：
| ST series solar power generation system cabinet | |||||||||

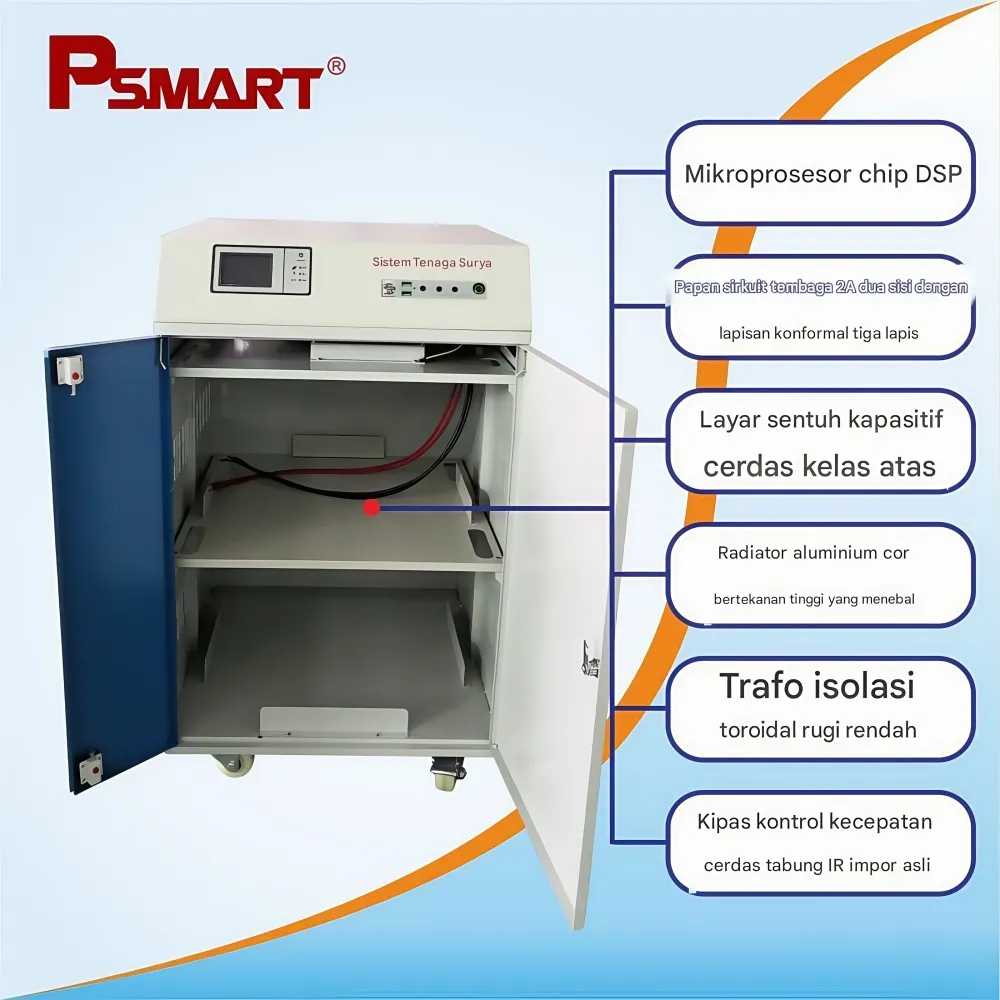

| Product Features: | |||||||||
| 1 | The design of the power frequency scheme is suitable for various types of loads; | 5 | Dual-mode operation with both grid power and solar energy, providing greater flexibility in use; | ||||||
| 2 | LCD display screen, toroidal transformer, low no-load loss; | 6 | Unmanned function (optional), more user-friendly; | ||||||
| 3 | Enhance protection functions, ensuring safety and reliability; | 7 | The battery charging current and charging voltage are adjustable; | ||||||
| 4 | It can be equipped with solar gel batteries, lead-acid maintenance-free batteries, lithium batteries, etc. | ||||||||
| model | ST0530 | ST1030 | ST1530 | ST2030 | ST3030 | ST4060 | ST5060 | ST6060 | |
| output power | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| battery voltage | 12V | 24V | 48V | ||||||
| Mains charging current | 30A (default) | ||||||||
| input | voltage range | 110V:85-138VAC;220V:170-275VAC | |||||||
| frequency | 50Hz: 46-54Hz; 60Hz: 55Hz-65Hz (automatic identification) | ||||||||
| communication output | voltage range | 110VAC/220VAC±5% (inverter mode) | |||||||
| frequency | 50/60Hz±1Hz (inverter mode) | ||||||||
| waveform | pure sine wave | ||||||||
| Convert time | <10ms (typical load) | ||||||||
| efficiency | >85% (80% resistive load) | ||||||||
| overload | 110-120%/30s;>150%/3s | ||||||||
| protection function | Battery overvoltage and undervoltage protection, overload protection, short circuit protection, overtemperature protection, etc | ||||||||
| display | LCD+LED | ||||||||
| cooling method | Forced air cooling | ||||||||
| Operating Temperature | 0-40℃ | ||||||||
| Overall dimensions (Length * Width * Height mm) |
580*350*605mm | 600*300*850mm | 580*560*850mm | ||||||
| Package dimensions | 730*500*775mm | 750*450*920mm | 730*710*1020mm | ||||||
| Net weight (kg) | 26 | 27 | 46 | 49 | 64 | 67 | 71 | 72 | |
| Gross weight (kg) | 35 | 36 | 56 | 49 | 76 | 79 | 83 | 84 | |
| Built-in controller parameters | |||||||||
| Maximum current | 30A | 50A | |||||||
| DC voltage | 24V | 48V | 24V | 48V | |||||
| Maximum power of the connected component | 750W | 1500W | 1400W | 2400W | |||||
| Photovoltaic input voltage range | MPPT 24V:34V-100V;48V:65V-150V PWM 24V:30V-50V;48V:60V-100V |
||||||||
Product Description：
Off-grid photovoltaic power generation systems operate independently of the power grid. They primarily consist of solar panels, energy storage batteries, a charge/discharge controller, and an inverter. They are particularly useful in areas without a power grid or experiencing frequent power outages. DC energy-saving lamps are particularly suitable for providing lighting during power outages.
Therefore, off-grid power generation systems are specifically designed for use in areas without a power grid or experiencing frequent power outages
