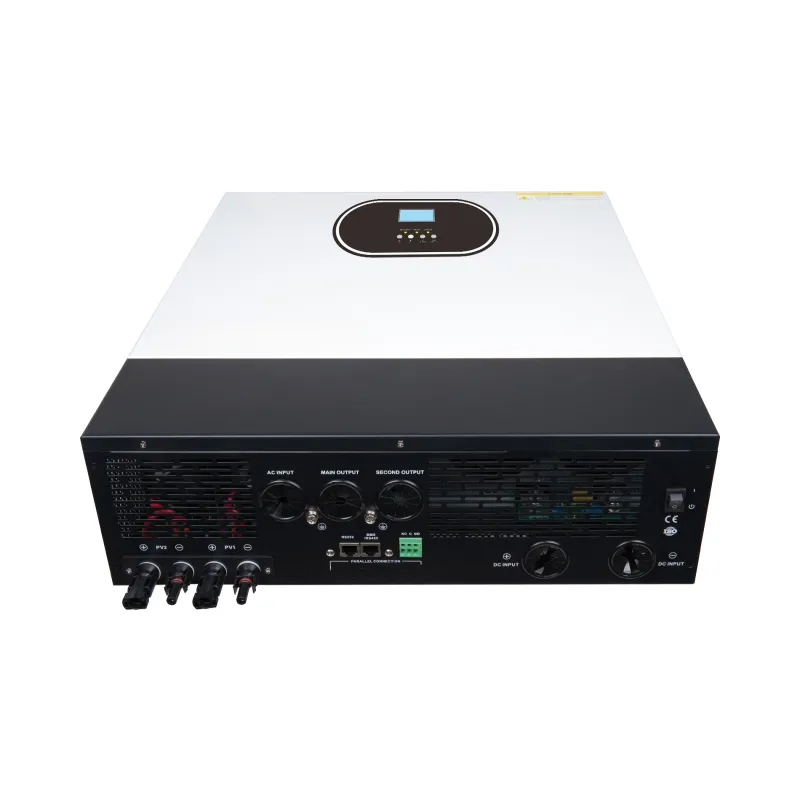

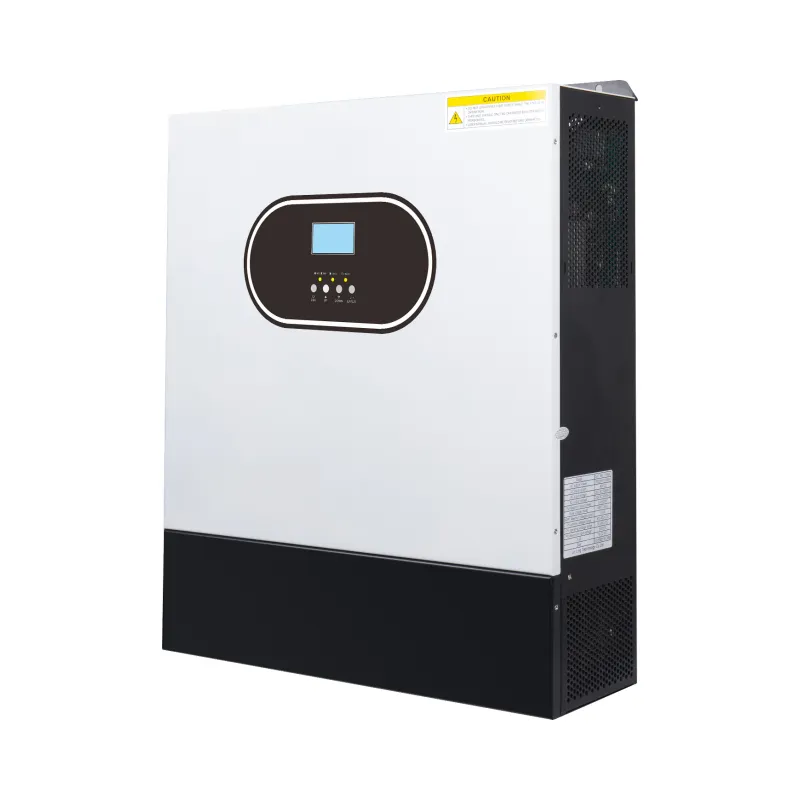

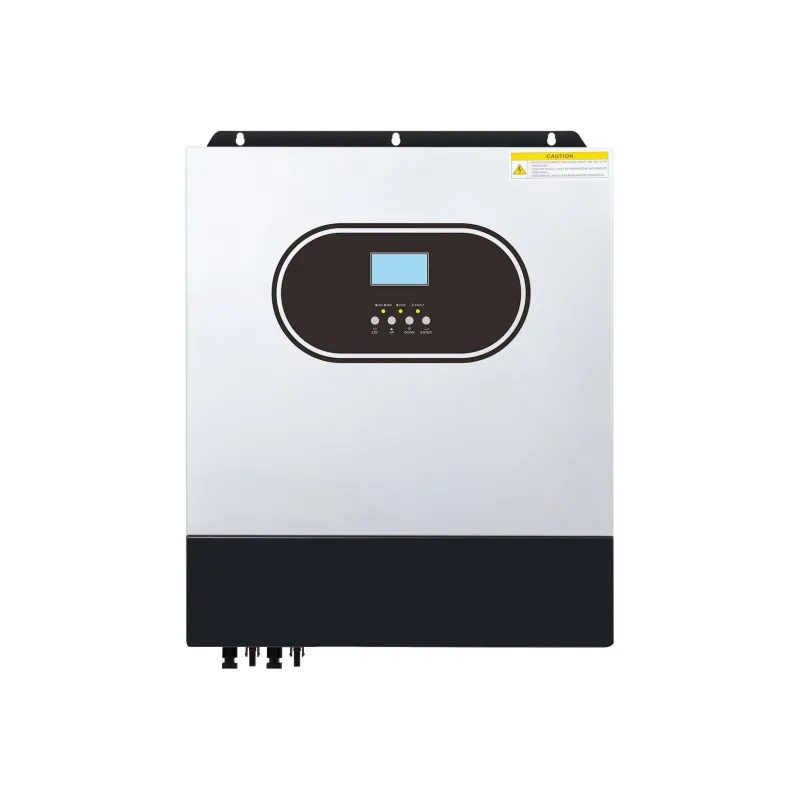

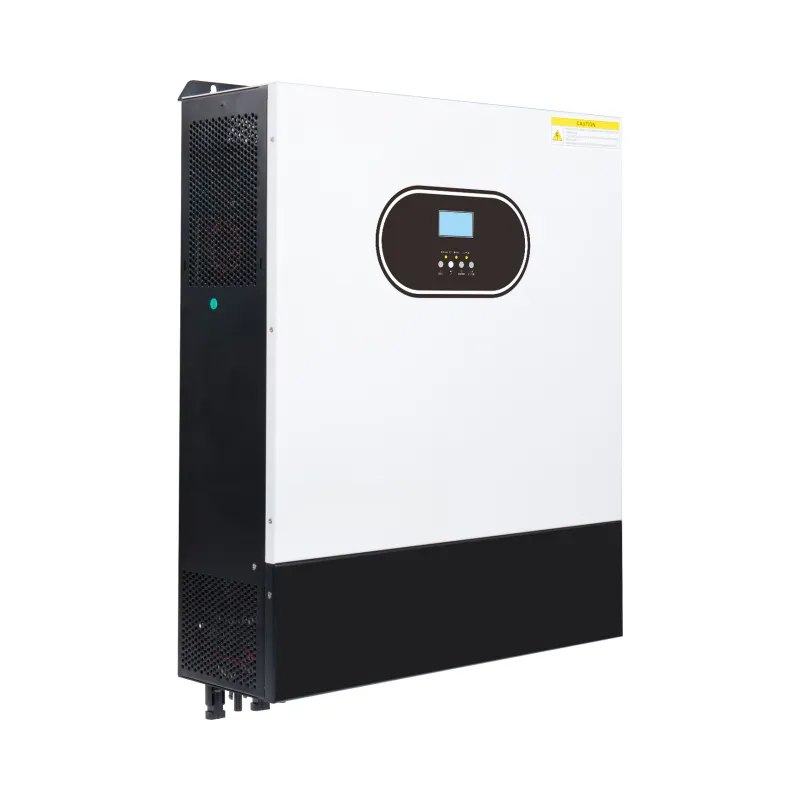

10.2KW off-grid inverter can be connected in parallel
| model | Length (cm) | Width (cm) | Height (cm) | Volume (cm) | Weight (g) |
| 10.2kW parallel model (LAB10.2KW) | 58 | 50 | 15 | 43500 | 19020 |
Category:
Specific details：
| Battery capacity | It is recommended to be above 20kWh. | place of production | China |
| Photoelectric panel power | About 10.2kw | product certification | CE |
| Host output capacity | About 10.2kw | Output frequency | 50/60 |
| brand | Leiling | outline dimension | 58*50*15mm |
| area of application | Photovoltaic off-grid energy storage system | model | 10.2kW parallel model (LAB10.2KW) |
| Art.No. | LAB10.2KW | ||
Product Description：
| Product Parameter | |||
| Model | LHCT8.5KW | LHCT10.2KW | |
| Input | Input Sources | L+N+PE | |
| Rated Input Voltage | 230VAC | ||
| Voltage Range | 170~275V(Settable) | ||
| Frequency | 45~65HZ | ||
| Output | Rated Capacity | 8500W | 10200W |
| MAX Main Load | 8500W | 10200W | |
| MAX2nd Load | 8500W | 10200W | |
| Output Voltage | 220/230VAC±5% | ||
| MAXLoad Cut Off Voltage(Battery Mode) | 52VDC(adjustable) | ||
| MAX Load Return Voltage(Battery Mode) | 54VDC(adjustable) | ||
| Output Frequency | 50/60Hz | ||

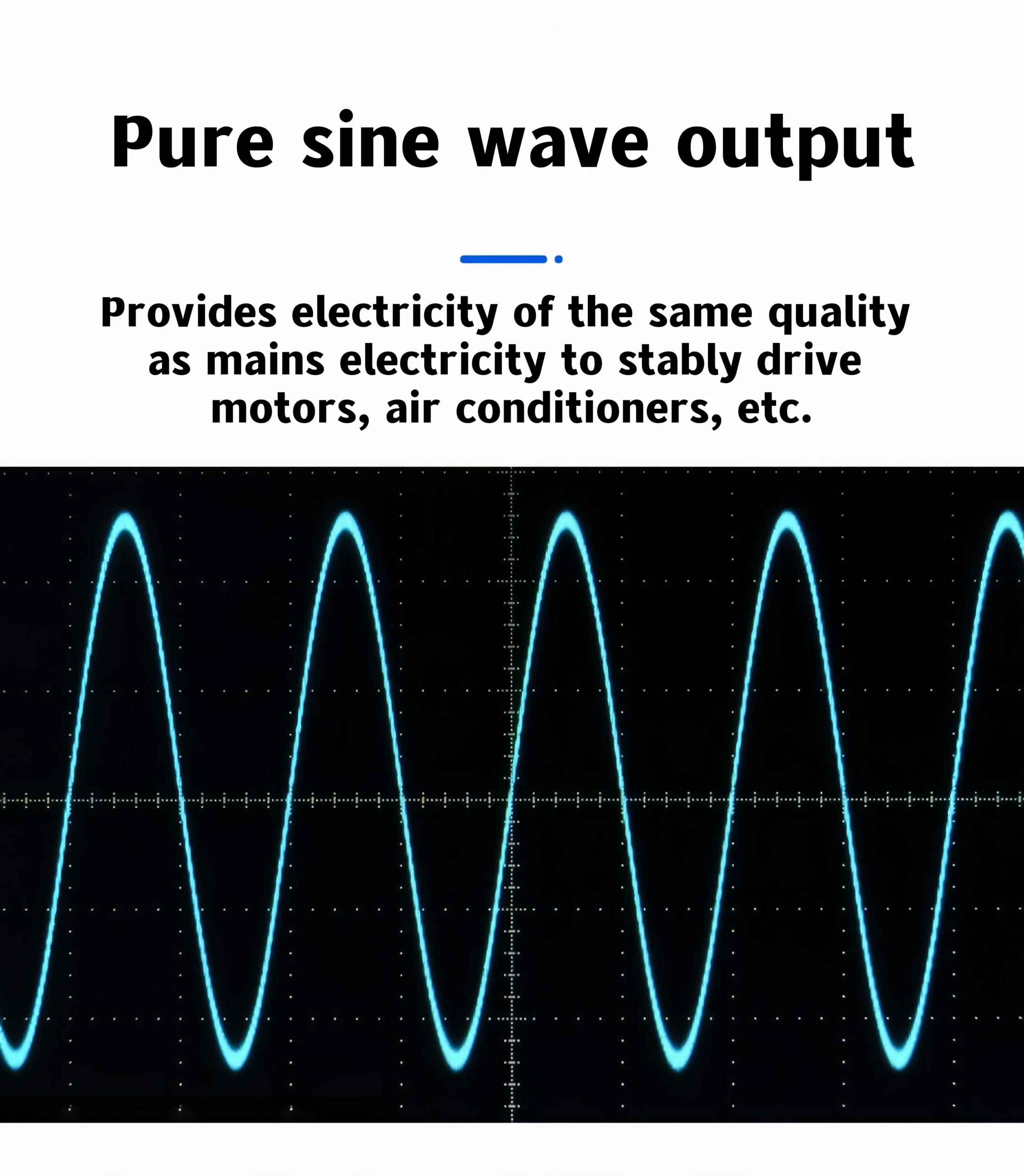

| Wave Form | Pure Sine Wave | ||
| Transfer Time | 10ms | ||
| Over Load Ability | 0.5s@>165%Load;3.5s@165%-150%Load; 7s@150%-130%Load;30s@130%-110%Load |
||
| Peak Efficiency | 94.0%@(Battery Mode);97.0%@(PV Mode) | ||
| Battery | 电池电压Battery Voltage | 48Vdc | |
| Constant Charging Voltage(adjustable) | 56.4Vdc | ||
| Floated Charging Voltage(adjustable) | 54Vdc | ||
| Chargers | PV MAXInput Power | 2X5400W | |
| MPPT Quantity | 2 | ||
| MPPT Tracking Range | 120-450Vdc | ||
| MAX PV Input Voltage | 500Vdc | ||
| Best Voltage | 300-400Vdc | ||
| MAXPV Charging Current | 160A | ||
| MAXAC Charging Current | 70A | ||
| MAX Discharge Current | 180A 200A | ||
| Display | LCD Display | supports 128 bit segment codes,can support up to 4buttons+3 LED lights,and can display running/input/output/load modes,etc. |
|
| Interface | Rs232 | USB,Baud Rate 9600 | |
| Communication Port | Lithium battery BMS communication card RS485、USB. | ||
| Parallel Function | 不支持并机Without Parallel | ||
| Enviorments | Operating Temperature | -10-50℃ | |
| Relative Humidity | 0~95% | ||
| Storage Temperature | -15-60℃ | ||
| Altitude | The altitude should not exceed 1000m,and the height above 1000m should lower the loads power,max height of 4000m.Refer to IEC62040-3; |
||
| General parameters |
Noise | ≤50db | |
| Protection | IP20 | ||
| Product size | 505*380*120mm | ||
| Package size | 605*435*200mm | ||
| Net weight | 13.2kg | ||
| Gross weight | 15.2kg | ||
10.2kw off-grid inverter is the core equipment of high-power independent power supply system, and its core function is to convert direct current (such as photovoltaic panels and large-capacity energy storage batteries) into 220V/380V alternating current to meet the demand of high-power electricity.

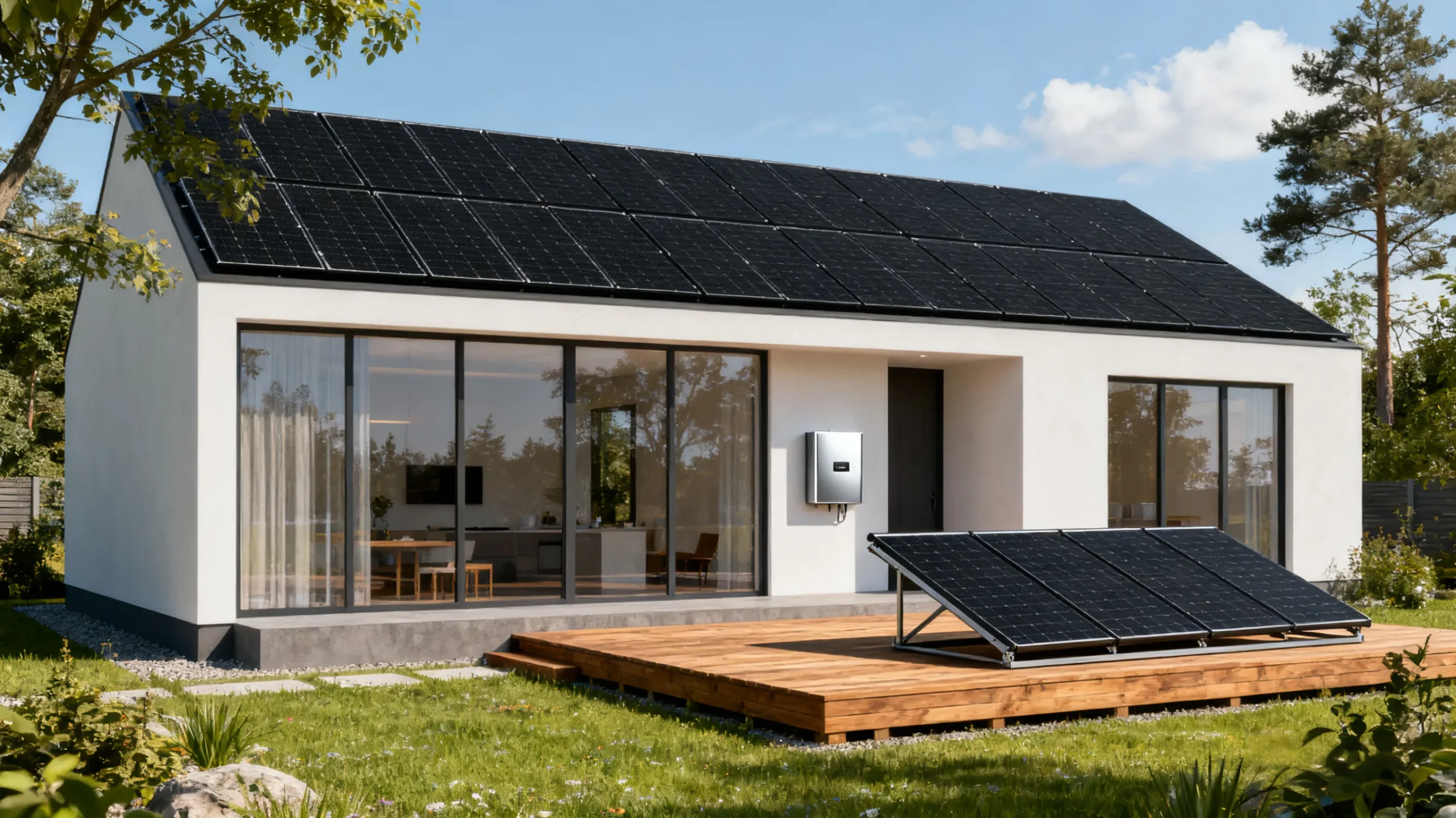

It can carry a power load of 10.2kw or less, and its application scenarios include large-scale household photovoltaic off-grid systems, outdoor engineering power supply by high-power equipment (such as medium-sized water pumps and small air compressors), power consumption by small and medium-sized processing plants in remote areas, etc. It can stably support the simultaneous operation of multiple household appliances (such as two air conditioners and two-door refrigerators) or industrial auxiliary equipment.
With multiple protections of overload, overvoltage, short circuit, overtemperature and undervoltage, most models support flexible adaptation with energy storage system, realize electric energy storage and recycling, completely get rid of the dependence of public power grid, and give consideration to the stability and safety of power supply. It is the core guarantee equipment for high-power independent power consumption scenarios.
